The DJ-3576-CORE is a Arm SoC Module/Core Board based on Rockchip's new-generation RK3576 processor. It on-chips an octa-core CPU (4×Cortex-A72 + 4×Cortex-A53) and a dedicated NEON coprocessor, delivering excellent multitasking and energy efficiency. It features a built-in ARM G52 MC3 GPU engine, supporting 4K@120fps H.265/AV1/VP9 decoding and 4K@60fps encoding. It also integrates a 6 TOPS NPU AI computing power, supporting the deployment of mainstream AI framework models and making it widely applicable to high-complexity data processing/visual processing and intelligent inference scenarios.

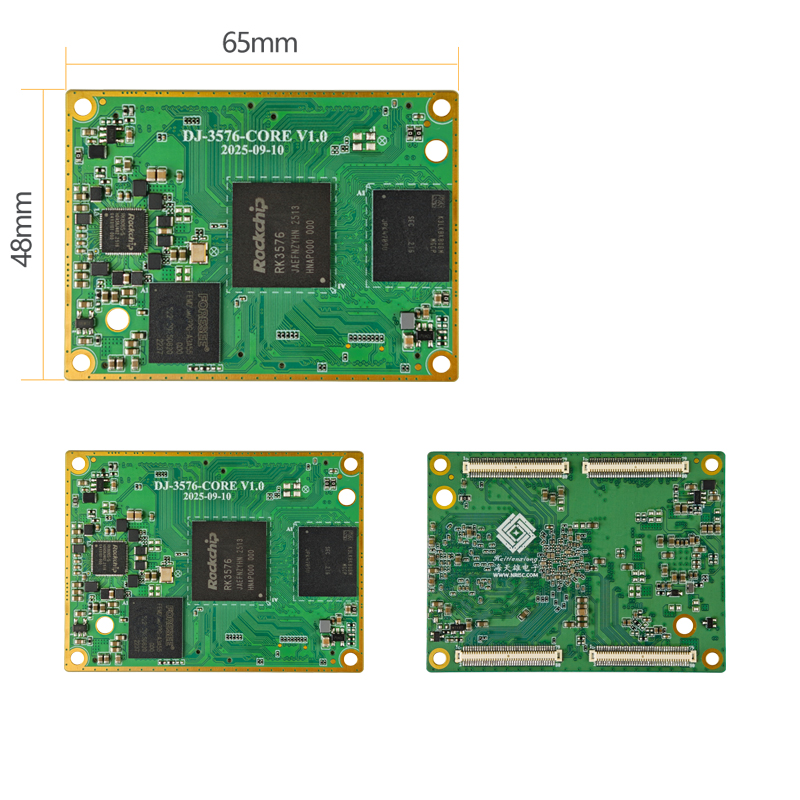

The DJ-3576-CORE Core board adopts a high-TG HDI board design process, on-board the CPU, LPDDR5, eMMC, and PMU. Signal interfaces are brought out through four precision-grade connectors, offering high reliability and easy installation. The core board dimension only 48mm*65mm, greatly satisfying the needs of products with limited space.

The DJ-3576-CORE core board is idea for applications such as industrial control, machine vision, embedded intelligent devices, medical devices, edge AI terminals, intelligent robots, drones, commercial displays, and automation terminals.

The DJ-3576-CORE core board can provide customized services such as memory/eMMC capacity configurations, baseboard design, and peripheral driver development according to different customer needs.

Feature：

l   Small-size, industrial-grade manufacturing process, meeting space constraints; TG HDI board design and technology, offering high reliability and stability, supports capable of 24/7 operation.

l   Powered by a Rockchip RK3576 octa-core processor with a maximum clock speed of 2.2GHz, it integrates an ARM G52 MC3 GPU and a 6-top-of-PS NPU, supporting 4K@120fps H.265/AV1/VP9 decoding and 4K@60fps encoding.

l   On-board 4GB of LPDDR5 RAM and 32GB of eMMC5.1 memory, expandable up to 16GB of RAM and 128GB of storage.

l   Rich interface options: Ethernet, UART, USB, CAN, I2C, HDMI/eDP/LVDS/MIPI-DSI, Audio, GPIO

l   Supports Android 14 and Linux Debian 12

l   Offer customized carrier boards and peripheral driver services, with technical support from senior engineers.
