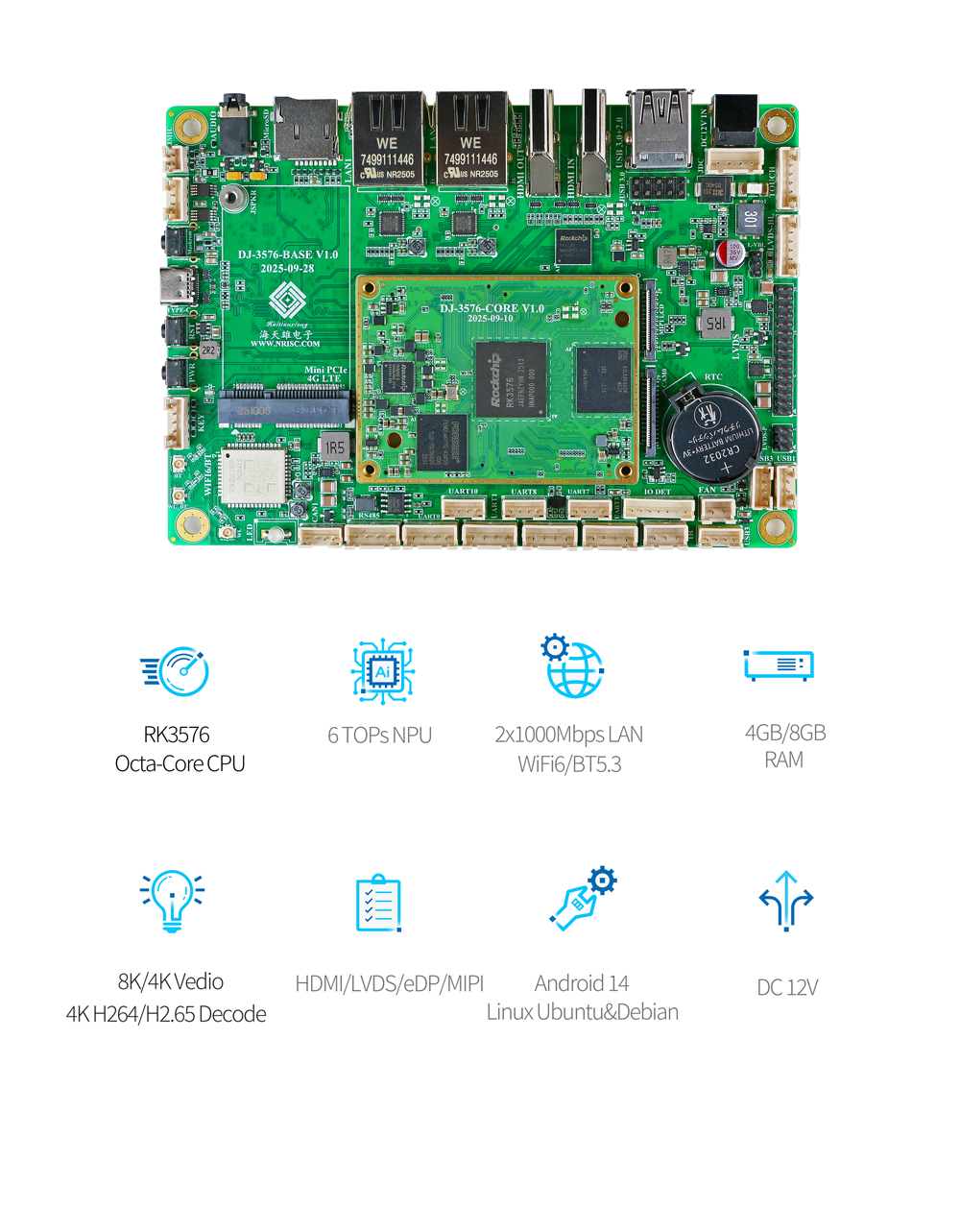

The DJ-3576 is a rugged 3.5-inch industrial single board computer, equipped with the Rockchip RK3576 high-performance embedded application processor. It integrates an eight-core CPU architecture (4×Cortex-A72 + 4×Cortex-A53) and a dedicated NEON coprocessor, offering excellent multitasking and energy efficiency. Its built-in ARM G52 MC3 GPU supports OpenGL ES 1.1/2.0/3.2 and integrates a 6 TOPS NPU, supporting mainstream AI framework model deployment. It can be widely used in high-complexity data processing/visual processing and intelligent inference scenarios.

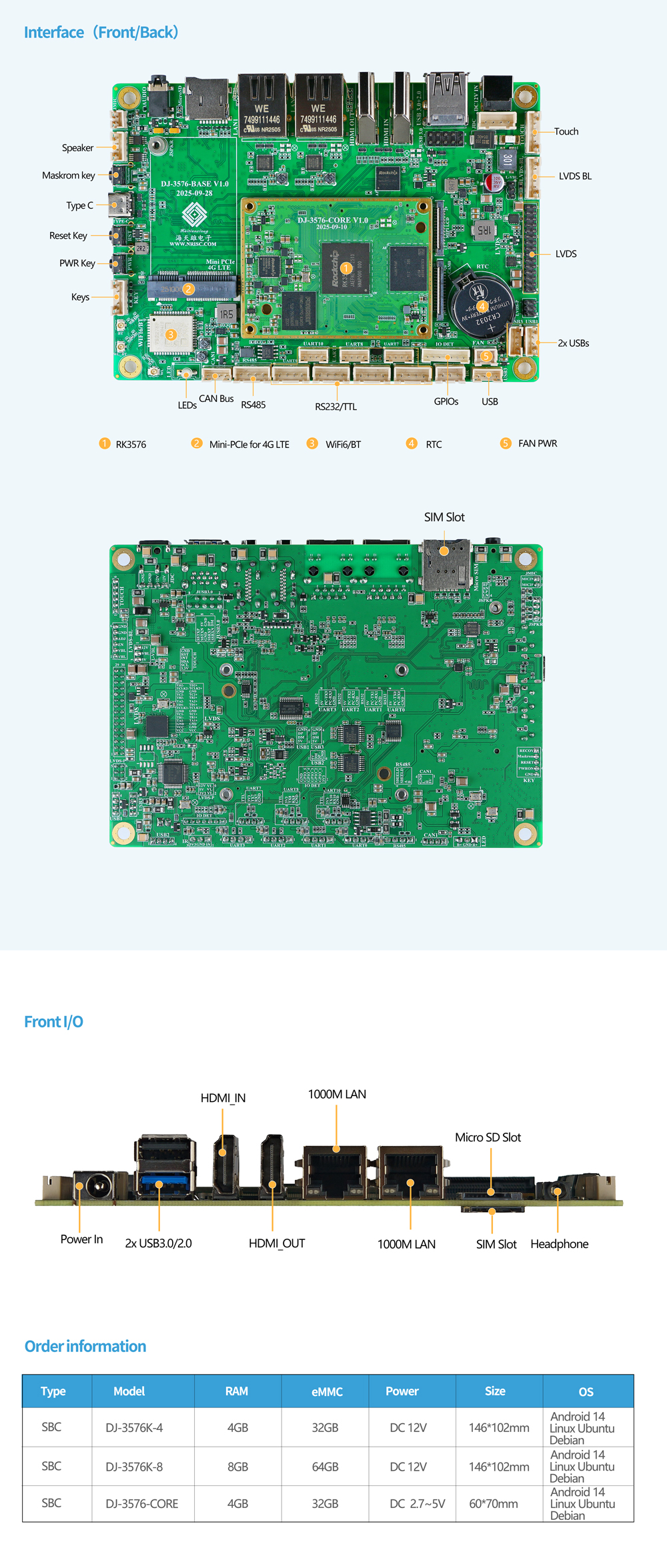

This motherboard offers a rich set of industrial application interfaces, is compatible with the previous generation DJ-3399/DJ-3288 platform, supports smooth upgrades and rapid integration, and is suitable for high-reliability application scenarios such as industrial control, machine vision, embedded intelligent devices, edge AI, intelligent robots, drones, medical devices, commercial displays and automation terminals.

Features

l   Dimension：3.5"(146x102mm）

l   RockchipRK3576 64-bit high-performance octa-core application processor @2.2GHz

l   IntegrationARM G52 MC3 GPU and 6 TOPS NPU

l   Supports 4K@120fps H.265/AV1/VP9 and 4K@60fps decode

l   On-board 4GB LPDDR5 + 32GB eMMC5.1

l   10-year supply cycle is suitable for long-term projects and product lifecycle management.
