DJ-8MPLUS is a new generation of industrial motherboard based on NXP Arm® Cortex®-A53 i.MX8M Plus series processors, specially designed for high-precision industrial intelligent equipment.

DJ-8MPLUS Solution

DJ-8MPLUS embedded motherboard has become an ideal choice for difference devices due to its powerful performance and rich interfaces. Its main features include:

l  Industrial Grade Quality: 3.5-inch form factor industrial-grade wide temperature motherboard, with long-term operation and long-term supply of products

l  Powerful processing capability: DJ-8MPLUS is equipped with NXP Arm Cortex-A53 i.MX8M Plus series quad-core processor (1.8GHz), combined with Cortex-M7 core, to meet the requirements of efficient computing and low power consumption, while supporting AI computing, sensor data processing and device control.

l  AI computing power support: The built-in NPU of DJ-8MPLUS provides 2.3 TOPS of AI computing power, which can handle complex AI tasks such as image recognition, object detection and path optimization, making the target device perform better in intelligence.

l  High-speed storage and expansion: Onboard LPDDR4 4GB memory, with a transfer rate of 4000MT/s, and 16GB eMMC5.1, suitable for processing big data and application algorithms, significantly improving response speed.

l  Rich interfaces: Support LVDS, MIPI-DSI and HDMI display output to meet high-resolution requirements. Communication interfaces include USB3.0, USB2.0, UART, etc. to increase device scalability.

l  Network and real-time communication: Integrated two-way Gigabit Ethernet and WIFI wireless network card to ensure high-speed, low-latency communication, suitable for industrial network equipment.

l  Low power consumption and heat dissipation: Through low power consumption design, DJ-8MPLUS is suitable for long-term operation of the device, optimizing heat dissipation and making the device run more stable.

DJ-8MPLUS is suitable for intelligent manufacturing equipment with its powerful processing capabilities, rich interfaces and low power consumption design. It can efficiently handle multi-task parallelism and a large amount of sensor data, ensuring efficient operation and reducing energy consumption. It is an ideal embedded solution for developers of intelligent manufacturing equipment.

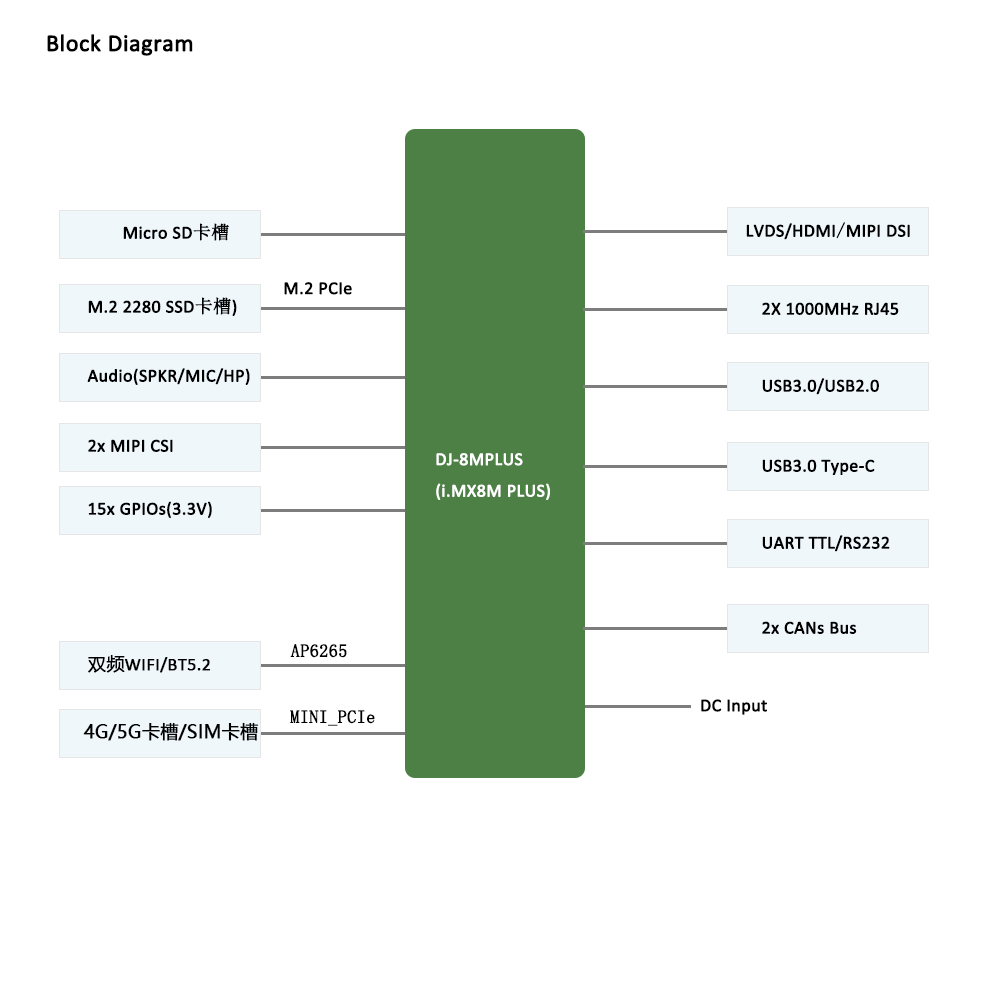

DJ-8MPLUS Block Diagram

DJ-8MPLUS Detail page ：

https://en.nrisc.com/qiye/Product/ARM-board/101_105.html

Application areas: industrial equipment, industrial automation, test and measurement, medical health, shipboard equipment, financial equipment, information equipment.
